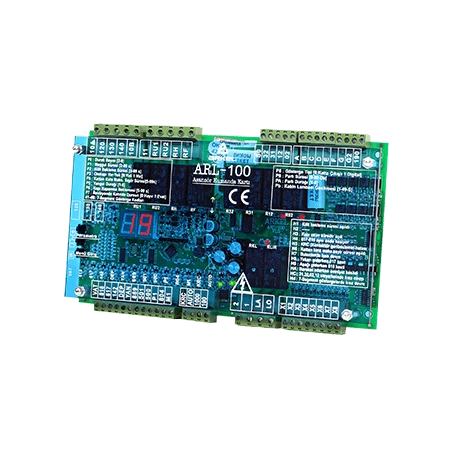

ARL-100

ARL 100

ARL 100 is a lift control card that can operate in lifts up to 8 stops with its ability to operate up to 1 m/s speed in accordance with EN 81-1.

Technical Specifications

  • Number of Stops : 8 Stops
  • Drive Type : Single Speed Double Speed
  • Serial Communication : None Cabin Position
  • Information : Magnetic Switch
  • Door Bridging : None
  • Programmable Input/Output : None
  • Language Options : Turkish
  • Control Type : Simple Control
  • Group Control : None
  • Lift Speed (Maximum) : 1 m/s
  • Automatic Door Control : Single Door
  • Indicator Outputs : 7 Segment
  • Error Log : None
  • Compliance with Standards : En 81-1
