ARL-200

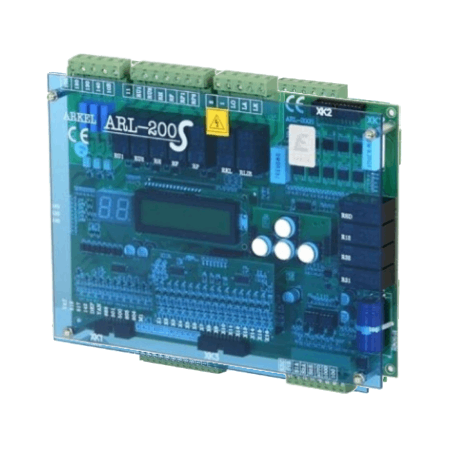

ARL 200 is a lift control card that can operate in lifts up to 16 stops with its ability to operate up to 1 m/s speed in accordance with EN 81-1.

Technical Specifications

Number of Stops : 16 Stops
Drive Type : Single Speed / VVVF
Serial Communication : With Cabin
Cabin Position Information : Magnetic Switch
Door Bridging : None
Programmable Input/Output : None
Language Options : Turkish, English, Dutch, Romanian, French (programming language)
Control Type : Simple Control/ Down or Full Collective
Lift Speed (Maximum) : 1,6 m/s
Automatic Door Control : Single Door
Indicator Outputs : 7 Segment
Error Log : None
Compliance with Standards : En 81-1
