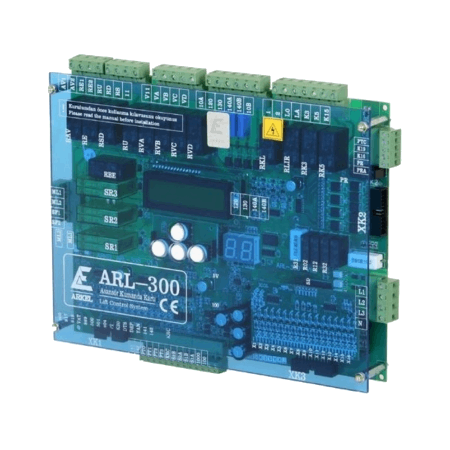

ARL-300

ARL 300 is a lift control card that complies with EN 81-1/2+A3, can operate up to 1.6 m/s speed in hydraulic and traction lifts up to 24 stops.

Technical Specifications

Number of Stops : 24 Stops
Type : Double Speed Hydraulic VVVF
Serial Communication : With Cabin
Cabin Position Information : Magnetic Switch
Door Bridging : Yes
Programmable Input/Output : None
Language Options : Turkish, English, Russian, Dutch, Romanian, German, Italian
Control Type : Simple Control/ Down or Full Collective
Group Control : 4
Lift Speed (Maximum) : 1,6 m/s
Automatic Door Control : Single Door Double Door
Indicator Outputs : 7 Segment Gray / Binary Code LCD Output
Error Log : Up to 60 Errors
Standards Compliance : En 81 / 1-2 /20+A3
