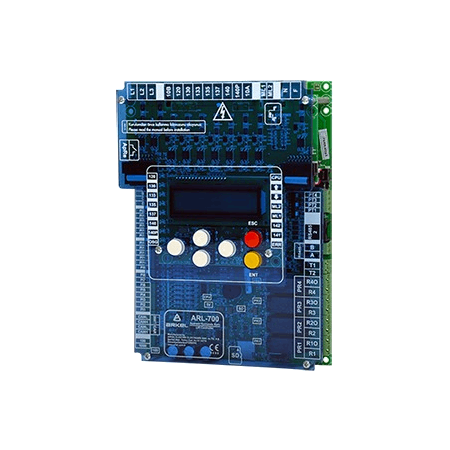

ARL-700

ARL 700

ARL 700 complete lift control system is a lift control card with 64 stops, hydraulic VVVF drive, 2.5 m/s maximum speed, serial communication with floor and car.

Technical Specifications

Number of Stops : 64 Stops
Drive Type : Hydraulic VVVF
Serial Communication : With Floor and Cabin
Cabin Position Information : Magnetic Switches Encoder System
Door Bridging : Yes
Programmable Input/Output : 20 Inputs / 8 Outputs (4 PR + 4PT)
Language Options : Turkish, English (additional language option with Arem)
Control Type : Simple Control/ Down or Full Collective
Group Control : 8
Lift Speed (Maximum) : 2,5 m/s
Automatic Door Control : Single Door Double Door
Indicator Outputs : 7 Segment Gray / Binary Code LCD Output
Error Log : Up to 100 Errors
Standards Compliance : En 81 / 1-2 /20+A3
