LWS 3FR​

Cabin

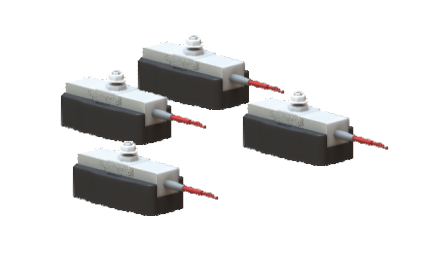

LWS 3FR is the first product of the Ametal R&D department’s electronic load measurement systems studies. The first product that was introduced in 2009 is a electronic system that can be programmed and mounted on the floor of the cabin to accurately measure the load carried in it. The unique feature allows for the completion of all settings in a few minutes.

Technical Specifications

  • Operating Voltage: 220 VAC or 24 VDC
  • Number of Contacts : 3
    (Overload: 804 – Full load: 805 – Minimum load: 802)
  • Contact : 10A 250VAC / 10A 28VDC
  • Capacity : 3200, 4800, 6400 Kg
  • Number of Sensors : 2- 4 – 6 – 8
  • Weight: 0,75 Kg
  • Total Weight : 3,10 Kg.
    (4 Sensors + power unit)
  • Cable length : 6 m
  • Ambient Temperature : -5°C, 70°C
  • Warranty : 2 Years
